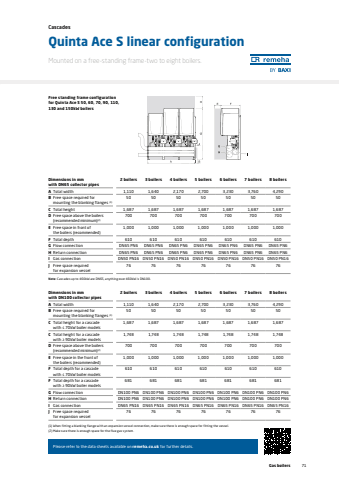

Please refer to the data sheets available on remeha.co.uk for further details.Mounted on a free-standing frame-two to eight boilers.Quinta Ace S linear configurationCascadesFree standing frame configuration for Quinta Ace S 50, 60, 70, 90, 110, 130 and 150kW boilersDimensions in mm with DN100 collector pipes2 boilers 3 boilers 4 boilers 5 boilers 6 boilers 7 boilers 8 boilersA Total width 1,110 1,640 2,170 2,700 3,230 3,760 4,290B Free space required for mounting the blanking flanges (1)50 50 50 50 50 50 50C Total height for a cascade with %u2264 70kW boiler models1,687 1,687 1,687 1,687 1,687 1,687 1,687C Total height for a cascade with %u2265 90kW boiler models1,748 1,748 1,748 1,748 1,748 1,748 1,748D Free space above the boilers (recommended minimum)(2)700 700 700 700 700 700 700E Free space in the front of the boilers (recommended)1,000 1,000 1,000 1,000 1,000 1,000 1,000F Total depth for a cascade with %u2264 70kW boiler models610 610 610 610 610 610 610F Total depth for a cascade with %u2265 90kW boiler models681 681 681 681 681 681 681G Flow connection DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6H Return connection DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6I Gas connection DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16J Free space required for expansion vessel76 76 76 76 76 76 76(1) When fitting a blanking flange with an expansion vessel connection, make sure there is enough space for fitting the vessel.(2) Make sure there is enough space for the flue gas system.Dimensions in mm with DN65 collector pipes2 boilers 3 boilers 4 boilers 5 boilers 6 boilers 7 boilers 8 boilersA Total width 1,110 1,640 2,170 2,700 3,230 3,760 4,290B Free space required for mounting the blanking flanges (1)50 50 50 50 50 50 50C Total height 1,687 1,687 1,687 1,687 1,687 1,687 1,687D Free space above the boilers (recommended minimum)(2)700 700 700 700 700 700 700E Free space in front of the boilers (recommended)1,000 1,000 1,000 1,000 1,000 1,000 1,000F Total depth 610 610 610 610 610 610 610G Flow connection DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6H Return connection DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6I Gas connection DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16J Free space required for expansion vessel76 76 76 76 76 76 76Note: Cascades up to 460kW are DN65, anything over 460kW is DN100.Gas boilers 71
