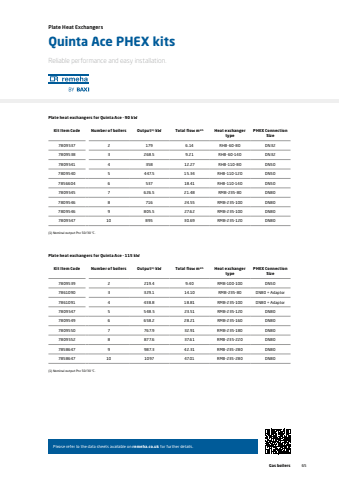

Quinta Ace PHEX kitsPlate Heat ExchangersPlease refer to the data sheets available on remeha.co.uk for further details.Kit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7809537 2 179 6.14 RHB-60-80 DN327809538 3 268.5 9.21 RHB-60-140 DN327809541 4 358 12.27 RHB-110-80 DN507809540 5 447.5 15.34 RHB-110-120 DN507856604 6 537 18.41 RHB-110-140 DN507809545 7 626.5 21.48 RMB-235-80 DN807809546 8 716 24.55 RMB-235-100 DN807809546 9 805.5 27.62 RMB-235-100 DN807809547 10 895 30.69 RMB-235-120 DN80Plate heat exchangers for Quinta Ace - 90 kW(1) Nominal output Pnc 50/30 %u00b0C.Kit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7809539 2 219.4 9.40 RMB-100-100 DN507861090 3 329.1 14.10 RMB-235-80 DN80 + Adaptor7861091 4 438.8 18.81 RMB-235-100 DN80 + Adaptor7809547 5 548.5 23.51 RMB-235-120 DN807809549 6 658.2 28.21 RMB-235-160 DN807809550 7 767.9 32.91 RMB-235-180 DN807809552 8 877.6 37.61 RMB-235-220 DN807858647 9 987.3 42.31 RMB-235-280 DN807858647 10 1097 47.01 RMB-235-280 DN80Plate heat exchangers for Quinta Ace - 115 kW(1) Nominal output Pnc 50/30 %u00b0C.Reliable performance and easy installation.Gas boilers 65
