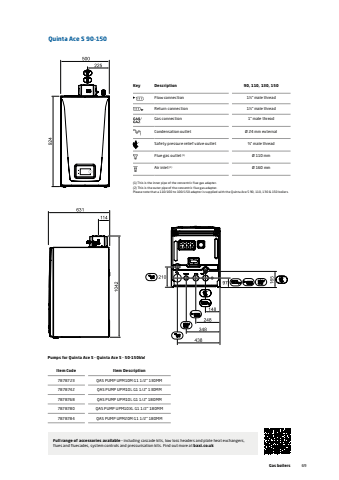

Full range of accessories available %u2013 including cascade kits, low loss headers and plate heat exchangers, flues and fluecades, system controls and pressurisation kits. Find out more at baxi.co.ukQuinta Ace S 90-150(1) This is the inner pipe of the concentric flue gas adapter.(2) This is the outer pipe of the concentric flue gas adapter.Please note that a 110/160 to 100/150 adaptor is supplied with the Quinta Ace S 90, 110, 130 & 150 boilers.Key Description 90, 110, 130, 150Flow connection 1%u00bd%u201d male threadReturn connection 1%u00bd%u201d male threadGas connection 1%u201d male threadCondensation outlet %u00d8 24 mm externalSafety pressure relief valve outlet %u00be%u201d male threadFlue gas outlet (1) %u00d8 110 mmAir inlet (2) %u00d8 160 mmItem Code Item Description7878723 QAS PUMP UPM10M G1 1/2%u201d 130MM7878742 QAS PUMP UPM10L G1 1/2%u201d 130MM7878768 QAS PUMP UPM10L G1 1/2%u201d 180MM7878780 QAS PUMP UPM10XL G1 1/2%u201d 180MM7878784 QAS PUMP UPM20M G1 1/2%u201d 180MMPumps for Quinta Ace S - Quinta Ace S - 50-150kWGas boilers 69
