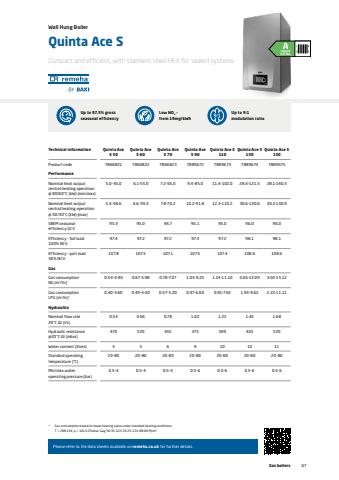

Please refer to the data sheets available on remeha.co.uk for further details.Compact and efficient, with stainless steel HEX for sealed systems.Quinta Ace SWall Hung Boiler* Gas consumption based on lower heating value under standard heating conditions: T = 288.15K, p = 1013.25mbar. Gag 30.33, G25 29.25, G31 88.00 MJ/m3.Technical information Quinta Ace S 50Quinta Ace S 60Quinta Ace S 70Quinta Ace S 90Quinta Ace S 110Quinta Ace S 130Quinta Ace S 150Product code 7866821 7866822 7866823 7889672 7889673 7889674 7889675PerformanceNominal heat output central heating operation @ 80/60%u00b0C (kW) (min/max)5.0-45.0 6.1-55.0 7.2-65.0 9.4-85.0 11.4-102.0 28.4-121.5 28.1-140.3Nominal heat output central heating operation @ 50/30%u00b0C (kW) (max)5.4-48.6 6.6-59.4 7.8-70.2 10.2-91.8 12.3-110.2 30.6-130.6 30.2-150.9SBEM seasonal efficiency GCV95.3 95.0 94.7 95.1 95.0 96.0 96.0Efficiency %u2013 full load 100% NCV97.4 97.2 97.2 97.3 97.2 98.1 98.1Efficiency %u2013 part load 30% NCV107.8 107.5 107.1 107.5 107.4 108.6 108.6GasGas consumption NG (m3/hr)*0.54-4.90 0.67-5.98 0.78-7.07 1.03-9.25 1.24-11.10 3.06-13.09 3.02-15.12Gas consumption LPG (m3/hr)*0.40-3.60 0.49-4.40 0.57-5.20 0.97-6.60 0.91-7.92 1.93-9.62 2.22-11.11HydraulicsNominal flow rate 20%u00b0C %u0394t (l/s)0.54 0.66 0.78 1.02 1.22 1.45 1.68Hydraulic resistance @20%u00b0C %u0394t (mbar)470 520 455 375 399 433 520Water content (litres) 4 5 6 9 10 10 11Standard operating temperature (%u00b0C)20-80 20-80 20-80 20-80 20-80 20-80 20-80Min/max water operating pressure (bar)0.5-4 0.5-4 0.5-4 0.5-6 0.5-6 0.5-6 0.5-6Low NOx %u2013 from 19mg/kWhUp to 97.3% gross seasonal efficiencyUp to 9:1 modulation ratioGas boilers 67
