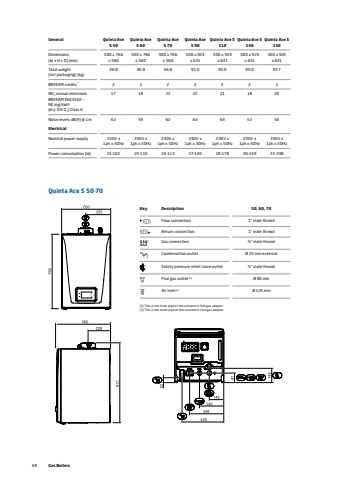

General Quinta Ace S 50Quinta Ace S 60Quinta Ace S 70Quinta Ace S 90Quinta Ace S 110Quinta Ace S 130Quinta Ace S 150Dimensions (W x H x D) (mm)500 x 766 x 560500 x 766 x 560500 x 766 x 560500 x 924 x 631500 x 924 x 631500 x 924 x 631500 x 924 x 631Total weight (incl packaging) (kg)46.8 46.8 56.8 91.0 95.0 95.0 97.7BREEAM credits** 2 2 2 2 2 2 2NOx annual emissions BREEAM EN15502 %u2013 NG mg/kWh (dry. 0% O2) Class 617 19 22 22 21 18 20Noise levels dB(A) @ 1m 62 59 62 63 63 52 56ElectricalNominal power supply 230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50HzPower consumption (W) 21-102 19-110 19-113 17-140 18-178 20-159 22-238(1) This is the inner pipe of the concentric flue gas adapter.(2) This is the outer pipe of the concentric flue gas adapter.Quinta Ace S 50-70Key Description 50, 60, 70Flow connection 1\Return connection 1\Gas connection %u00be\Condensation outlet %u00d8 22 mm externalSafety pressure relief valve outlet %u00be\Flue gas outlet (1) %u00d8 80 mmAir inlet (2) %u00d8 125 mm68 Gas Boilers
