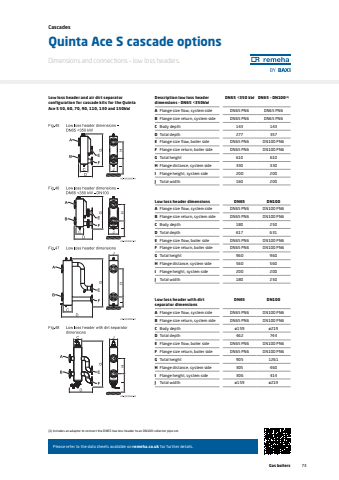

Please refer to the data sheets available on remeha.co.uk for further details.Dimensions and connections %u2013 low loss headers.Quinta Ace S cascade optionsCascadesDescription low loss header dimensions %u2013 DN65 <350kWDN65 <350 kW DN65 %u2013 DN100(1)A Flange size flow, system side DN65 PN6 DN65 PN6B Flange size return, system side DN65 PN6 DN65 PN6C Body depth 143 143D Total depth 277 357E Flange size flow, boiler side DN65 PN6 DN100 PN6F Flange size return, boiler side DN65 PN6 DN100 PN6G Total height 610 610H Flange distance, system side 330 330I Flange height, system side 200 200J Total width 160 200Low loss header dimensions DN65 DN100A Flange size flow, system side DN65 PN6 DN100 PN6B Flange size return, system side DN65 PN6 DN100 PN6C Body depth 180 250D Total depth 617 631E Flange size flow, boiler side DN65 PN6 DN100 PN6F Flange size return, boiler side DN65 PN6 DN100 PN6G Total height 960 960H Flange distance, system side 560 560I Flange height, system side 200 200J Total width 180 250Low loss header with dirt separator dimensionsDN65 DN100A Flange size flow, system side DN65 PN6 DN100 PN6B Flange size return, system side DN65 PN6 DN100 PN6C Body depth %u00f8159 %u00f8219D Total depth 462 744E Flange size flow, boiler side DN65 PN6 DN100 PN6F Flange size return, boiler side DN65 PN6 DN100 PN6G Total height 905 1261H Flange distance, system side 305 460I Flange height, system side 306 414J Total width %u00f8159 %u00f8219Low loss header and air dirt separator configuration for cascade kits for the Quinta Ace S 50, 60, 70, 90, 110, 130 and 150kW(1) Includes an adaptor to connect the DN65 low loss header to an DN100 collector pipe set.Gas boilers 73
