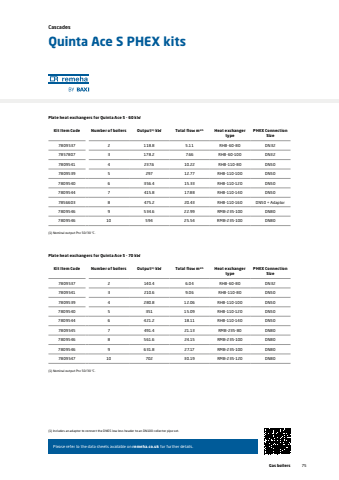

Please refer to the data sheets available on remeha.co.uk for further details.Quinta Ace S PHEX kitsCascades(1) Includes an adaptor to connect the DN65 low loss header to an DN100 collector pipe set.Kit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7809537 2 118.8 5.11 RHB-60-80 DN327857807 3 178.2 7.66 RHB-60-100 DN327809541 4 237.6 10.22 RHB-110-80 DN507809539 5 297 12.77 RHB-110-100 DN507809540 6 356.4 15.33 RHB-110-120 DN507809544 7 415.8 17.88 RHB-110-140 DN507856603 8 475.2 20.43 RHB-110-160 DN50 + Adaptor7809546 9 534.6 22.99 RMB-235-100 DN807809546 10 594 25.54 RMB-235-100 DN80Plate heat exchangers for Quinta Ace S - 60 kW(1) Nominal output Pnc 50/30 %u00b0C.Plate heat exchangers for Quinta Ace S - 70 kWKit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7809537 2 140.4 6.04 RHB-60-80 DN327809541 3 210.6 9.06 RHB-110-80 DN507809539 4 280.8 12.06 RHB-110-100 DN507809540 5 351 15.09 RHB-110-120 DN507809544 6 421.2 18.11 RHB-110-140 DN507809545 7 491.4 21.13 RMB-235-80 DN807809546 8 561.6 24.15 RMB-235-100 DN807809546 9 631.8 27.17 RMB-235-100 DN807809547 10 702 30.19 RMB-235-120 DN80(1) Nominal output Pnc 50/30 %u00b0C.Gas boilers 75
