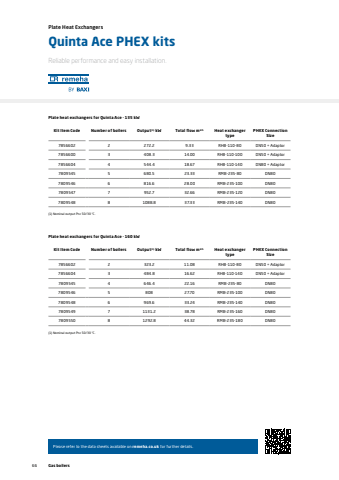

Please refer to the data sheets available on remeha.co.uk for further details.Quinta Ace PHEX kitsPlate Heat ExchangersKit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7856602 2 272.2 9.33 RHB-110-80 DN50 + Adaptor7856600 3 408.3 14.00 RHB-110-100 DN50 + Adaptor7856604 4 544.4 18.67 RHB-110-140 DN80 + Adaptor7809545 5 680.5 23.33 RMB-235-80 DN807809546 6 816.6 28.00 RMB-235-100 DN807809547 7 952.7 32.66 RMB-235-120 DN807809548 8 1088.8 37.33 RMB-235-140 DN80Plate heat exchangers for Quinta Ace - 135 kW(1) Nominal output Pnc 50/30 %u00b0C.Kit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7856602 2 323.2 11.08 RHB-110-80 DN50 + Adaptor7856604 3 484.8 16.62 RHB-110-140 DN50 + Adaptor7809545 4 646.4 22.16 RMB-235-80 DN807809546 5 808 27.70 RMB-235-100 DN807809548 6 969.6 33.24 RMB-235-140 DN807809549 7 1131.2 38.78 RMB-235-160 DN807809550 8 1292.8 44.32 RMB-235-180 DN80Plate heat exchangers for Quinta Ace - 160 kW(1) Nominal output Pnc 50/30 %u00b0C.Reliable performance and easy installation.66 Gas boilers
