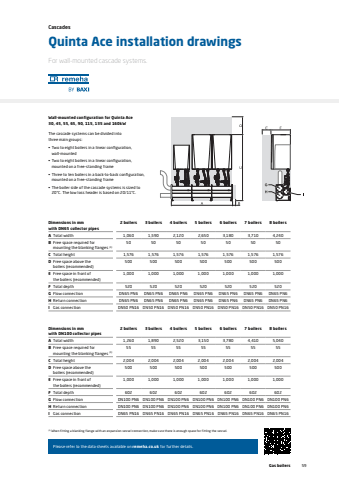

For wall-mounted cascade systems.CascadesQuinta Ace installation drawingsPlease refer to the data sheets available on remeha.co.uk for further details.Dimensions in mm with DN65 collector pipes2 boilers 3 boilers 4 boilers 5 boilers 6 boilers 7 boilers 8 boilersA Total width 1,060 1,590 2,120 2,650 3,180 3,710 4,240B Free space required for mounting the blanking flanges (1)50 50 50 50 50 50 50C Total height 1,576 1,576 1,576 1,576 1,576 1,576 1,576D Free space above the boilers (recommended)500 500 500 500 500 500 500E Free space in front of the boilers (recommended)1,000 1,000 1,000 1,000 1,000 1,000 1,000F Total depth 520 520 520 520 520 520 520G Flow connection DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6H Return connection DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6I Gas connection DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16Dimensions in mm with DN100 collector pipes2 boilers 3 boilers 4 boilers 5 boilers 6 boilers 7 boilers 8 boilersA Total width 1,260 1,890 2,520 3,150 3,780 4,410 5,040B Free space required for mounting the blanking flanges (1)55 55 55 55 55 55 55C Total height 2,004 2,004 2,004 2,004 2,004 2,004 2,004D Free space above the boilers (recommended)500 500 500 500 500 500 500E Free space in front of the boilers (recommended)1,000 1,000 1,000 1,000 1,000 1,000 1,000F Total depth 602 602 602 602 602 602 602G Flow connection DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6H Return connection DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6I Gas connection DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16Wall-mounted configuration for Quinta Ace 30, 45, 55, 65, 90, 115, 135 and 160kWThe cascade systems can be divided into three main groups:%u2022 Two to eight boilers in a linear configuration, wall-mounted%u2022 Two to eight boilers in a linear configuration, mounted on a free-standing frame%u2022 Three to ten boilers in a back-to-back configuration, mounted on a free-standing frame%u2022 The boiler side of the cascade systems is sized to 20%u00b0C. The low loss header is based on 20/11%u00b0C.(1) When fitting a blanking flange with an expansion vessel connection, make sure there is enough space for fitting the vessel.Gas boilers 59
