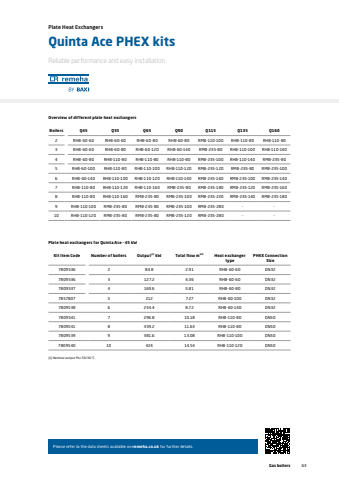

Quinta Ace PHEX kitsPlate Heat ExchangersPlease refer to the data sheets available on remeha.co.uk for further details.Boilers Q45 Q55 Q65 Q90 Q115 Q135 Q1602 RHB-60-60 RHB-60-60 RHB-60-80 RHB-60-80 RMB-110-100 RHB-110-80 RHB-110-803 RHB-60-60 RHB-60-80 RHB-60-120 RHB-60-140 RMB-235-80 RHB-110-100 RHB-110-1404 RHB-60-80 RHB-110-80 RHB-110-80 RHB-110-80 RMB-235-100 RHB-110-140 RMB-235-805 RHB-60-100 RHB-110-80 RHB-110-100 RHB-110-120 RMB-235-120 RMB-235-80 RMB-235-1006 RHB-60-140 RHB-110-100 RHB-110-120 RHB-110-140 RMB-235-160 RMB-235-100 RMB-235-1407 RHB-110-80 RHB-110-120 RHB-110-160 RMB-235-80 RMB-235-180 RMB-235-120 RMB-235-1608 RHB-110-80 RHB-110-160 RMB-235-80 RMB-235-100 RMB-235-220 RMB-235-140 RMB-235-1809 RHB-110-100 RMB-235-80 RMB-235-80 RMB-235-100 RMB-235-280 - -10 RHB-110-120 RMB-235-80 RMB-235-80 RMB-235-120 RMB-235-280 - -Overview of different plate heat exchangersKit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7809536 2 84.8 2.91 RHB-60-60 DN327809536 3 127.2 4.36 RHB-60-60 DN327809537 4 169.6 5.81 RHB-60-80 DN327857807 5 212 7.27 RHB-60-100 DN327809538 6 254.4 8.72 RHB-60-140 DN327809541 7 296.8 10.18 RHB-110-80 DN507809541 8 339.2 11.63 RHB-110-80 DN507809539 9 381.6 13.08 RHB-110-100 DN507809540 10 424 14.54 RHB-110-120 DN50Plate heat exchangers for Quinta Ace - 45 kW(1) Nominal output Pnc 50/30 %u00b0C.Reliable performance and easy installation.Gas boilers 63
