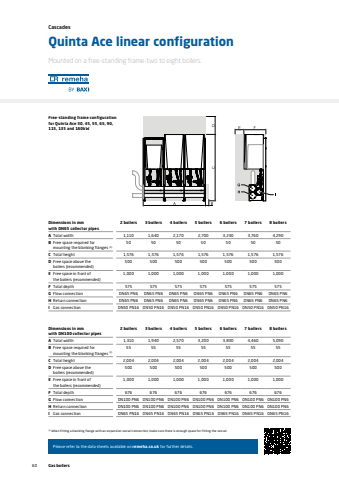

Please refer to the data sheets available on remeha.co.uk for further details.Mounted on a free-standing frame-two to eight boilers.Quinta Ace linear configurationCascadesDimensions in mm with DN65 collector pipes2 boilers 3 boilers 4 boilers 5 boilers 6 boilers 7 boilers 8 boilersA Total width 1,110 1,640 2,170 2,700 3,230 3,760 4,290B Free space required for mounting the blanking flanges (1)50 50 50 50 50 50 50C Total height 1,576 1,576 1,576 1,576 1,576 1,576 1,576D Free space above the boilers (recommended)500 500 500 500 500 500 500E Free space in front of the boilers (recommended)1,000 1,000 1,000 1,000 1,000 1,000 1,000F Total depth 575 575 575 575 575 575 575G Flow connection DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6H Return connection DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6 DN65 PN6I Gas connection DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16 DN50 PN16Dimensions in mm with DN100 collector pipes2 boilers 3 boilers 4 boilers 5 boilers 6 boilers 7 boilers 8 boilersA Total width 1,310 1,940 2,570 3,200 3,830 4,460 5,090B Free space required for mounting the blanking flanges (1)55 55 55 55 55 55 55C Total height 2,004 2,004 2,004 2,004 2,004 2,004 2,004D Free space above the boilers (recommended)500 500 500 500 500 500 500E Free space in front of the boilers (recommended)1,000 1,000 1,000 1,000 1,000 1,000 1,000F Total depth 676 676 676 676 676 676 676G Flow connection DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6H Return connection DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6 DN100 PN6I Gas connection DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16 DN65 PN16Free-standing frame configuration for Quinta Ace 30, 45, 55, 65, 90, 115, 135 and 160kW(1) When fitting a blanking flange with an expansion vessel connection, make sure there is enough space for fitting the vessel.60 Gas boilers
