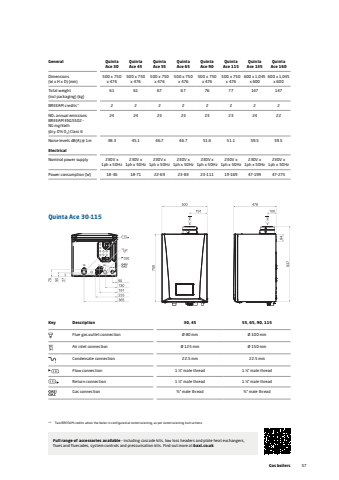

General Quinta Ace 30Quinta Ace 45Quinta Ace 55Quinta Ace 65Quinta Ace 90Quinta Ace 115Quinta Ace 135Quinta Ace 160Dimensions (W x H x D) (mm)500 x 750 x 476500 x 750 x 476500 x 750 x 476500 x 750 x 476500 x 750 x 476500 x 750 x 476600 x 1,045 x 600600 x 1,045 x 600Total weight (incl packaging) (kg)61 61 67 67 76 77 147 147BREEAM credits** 2 2 2 2 2 2 2 2NOx annual emissions BREEAM EN15502 %u2013 NG mg/kWh (dry. 0% O2) Class 624 24 23 23 23 23 24 22Noise levels dB(A) @ 1m 38.3 45.1 46.7 46.7 51.6 51.1 59.5 59.5ElectricalNominal power supply 230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50Hz230V x 1ph x 50HzPower consumption (W) 18-36 18-71 22-69 23-83 23-111 19-169 47-199 47-275** Two BREEAM credits when the boiler is configured at commissioning, as per commissioning instructions.Full range of accessories available %u2013 including cascade kits, low loss headers and plate heat exchangers, flues and fluecades, system controls and pressurisation kits. Find out more at baxi.co.ukKey Description 30, 45 55, 65, 90, 115Flue gas outlet connection %u00d8 80 mm %u00d8 100 mmAir inlet connection %u00d8 125 mm %u00d8 150 mmCondensate connection 22.5 mm 22.5 mmFlow connection 1 %u00bc%u201d male thread 1 %u00bc%u201d male threadReturn connection 1 %u00bc%u201d male thread 1 %u00bc%u201d male threadGas connection %u00be%u201d male thread %u00be%u201d male threadQuinta Ace 30-115Gas boilers 57
