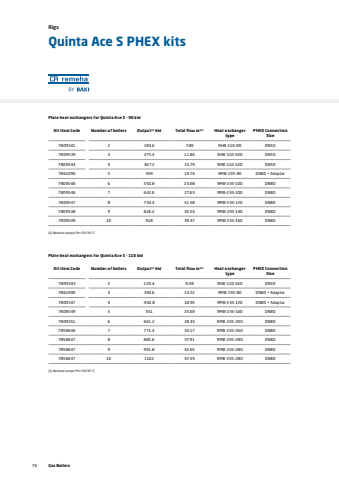

RigsQuinta Ace S PHEX kitsKit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7809541 2 183.6 7.89 RHB-110-80 DN507809539 3 275.4 11.84 RHB-110-100 DN507809544 4 367.2 15.79 RHB-110-140 DN507861090 5 459 19.74 RMB-235-80 DN80 + Adaptor7809546 6 550.8 23.68 RMB-235-100 DN807809546 7 642.6 27.63 RMB-235-100 DN807809547 8 734.4 31.58 RMB-235-120 DN807809548 9 826.2 35.53 RMB-235-140 DN807809549 10 918 39.47 RMB-235-160 DN80Plate heat exchangers for Quinta Ace S - 90 kW(1) Nominal output Pnc 50/30 %u00b0C.Kit Item Code Number of boilers Output(1) kW Total flow m3/h Heat exchanger typePHEX Connection Size7809543 2 220.4 9.48 RHB-110-160 DN507861090 3 330.6 14.22 RMB-235-80 DN80 + Adaptor7809547 4 440.8 18.95 RMB-235-120 DN80 + Adaptor7809549 5 551 23.69 RMB-235-160 DN807809551 6 661.2 28.43 RMB-235-200 DN807858646 7 771.4 33.17 RMB-235-260 DN807858647 8 881.6 37.91 RMB-235-280 DN807858647 9 991.8 42.65 RMB-235-280 DN807858647 10 1102 47.39 RMB-235-280 DN80Plate heat exchangers for Quinta Ace S - 110 kW(1) Nominal output Pnc 50/30 %u00b0C.76 Gas Boilers
