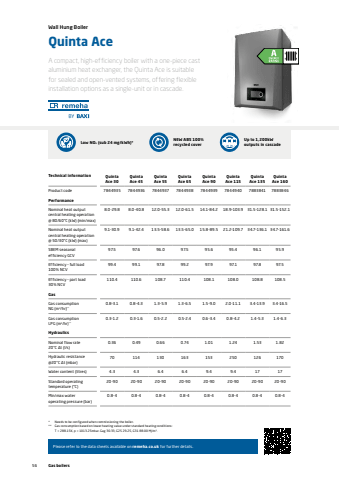

Please refer to the data sheets available on remeha.co.uk for further details.Quinta AceA compact, high-efficiency boiler with a one-piece cast aluminium heat exchanger, the Quinta Ace is suitable for sealed and open-vented systems, offering flexible installation options as a single-unit or in cascade.Wall Hung Boiler* Needs to be configured when commissioning the boiler.** Gas consumption based on lower heating value under standard heating conditions: T = 288.15K, p = 1013.25mbar. Gag 30.33, G25 29.25, G31 88.00 MJ/m3.NEW ABS 100% recycled cover Low NOx (sub 24 mg/kWh)* Up to 1,200kW outputs in cascadeTechnical information Quinta Ace 30Quinta Ace 45Quinta Ace 55Quinta Ace 65Quinta Ace 90Quinta Ace 115Quinta Ace 135Quinta Ace 160Product code 7844935 7844936 7844937 7844938 7844939 7844940 7883841 7883846PerformanceNominal heat output central heating operation @ 80/60%u00b0C (kW) (min/max)8.0-29.8 8.0-40.8 12.0-55.3 12.0-61.5 14.1-84.2 18.9-103.9 31.5-128.1 31.5-152.1Nominal heat output central heating operation @ 50/30%u00b0C (kW) (max)9.1-30.9 9.1-42.4 13.5-58.6 13.5-65.0 15.8-89.5 21.2-109.7 34.7-136.1 34.7-161.6SBEM seasonal efficiency GCV97.5 97.6 96.0 97.5 95.6 95.4 96.1 95.9Efficiency %u2013 full load 100% NCV99.4 99.1 97.8 99.2 97.9 97.1 97.8 97.5Efficiency %u2013 part load 30% NCV110.4 110.6 108.7 110.4 108.1 108.0 108.8 108.5GasGas consumption NG (m3/hr)**0.8-3.1 0.8-4.3 1.3-5.9 1.3-6.5 1.5-9.0 2.0-11.1 3.4-13.9 3.4-16.5Gas consumption LPG (m3/hr)**0.3-1.2 0.3-1.6 0.5-2.2 0.5-2.4 0.6-3.4 0.8-4.2 1.4-5.3 1.4-6.3HydraulicsNominal flow rate 20%u00b0C %u0394t (l/s)0.36 0.49 0.66 0.74 1.01 1.24 1.53 1.82Hydraulic resistance @20%u00b0C %u0394t (mbar)70 114 130 163 153 250 126 170Water content (litres) 4.3 4.3 6.4 6.4 9.4 9.4 17 17Standard operating temperature (%u00b0C)20-90 20-90 20-90 20-90 20-90 20-90 20-90 20-90Min/max water operating pressure (bar)0.8-4 0.8-4 0.8-4 0.8-4 0.8-4 0.8-4 0.8-4 0.8-456 Gas boilers
