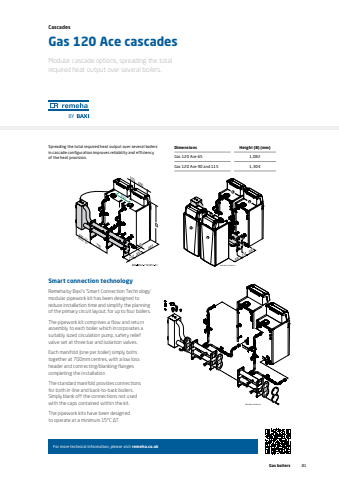

For more technical information, please visit remeha.co.ukModular cascade options, spreading the total required heat output over several boilers.Gas 120 Ace cascadesCascadesDimensions Height (B) (mm)Gas 120 Ace 65 1,082Gas 120 Ace 90 and 115 1,304Smart connection technologyRemeha by Baxi%u2019s %u2018Smart Connection Technology%u2019 modular pipework kit has been designed to reduce installation time and simplify the planning of the primary circuit layout, for up to four boilers.The pipework kit comprises a flow and return assembly to each boiler which incorporates a suitably sized circulation pump, safety relief valve set at three bar and isolation valves.Each manifold (one per boiler) simply bolts together at 700mm centres, with a low loss header and connecting/blanking flanges completing the installation. The standard manifold provides connections for both in-line and back-to-back boilers. Simply blank off the connections not used with the caps contained within the kit.The pipework kits have been designed to operate at a minimum 15%u00b0C %u0394T.MW-IMG2-7723251-013412MW-IMG4-7723251-01MW-IMG2-7723251-013412MW-IMG4-7723251-01Spreading the total required heat output over several boilers in cascade configuration improves reliability and efficiency of the heat provision.Gas boilers 81
