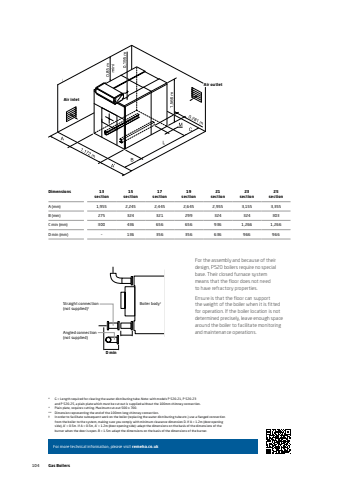

For more technical information, please visit remeha.co.ukFor the assembly and because of their design, P520 boilers require no special base. Their closed furnace system means that the floor does not need to have refractory properties.Ensure is that the floor can support the weight of the boiler when it is fitted for operation. If the boiler location is not determined precisely, leave enough space around the boiler to facilitate monitoring and maintenance operations.Dimensions 13section15section17section19section21section23section25sectionA (mm) 1,955 2,245 2,445 2,645 2,955 3,155 3,355B (mm) 275 324 321 299 324 324 303C min (mm) 300 436 656 656 936 1,266 1,266D min (mm) %u2013 136 356 356 636 966 966# G = Length required for clearing the water distributing tube. Note: with models P 520-21, P 520-23 and P 520-25, a plain plate which must be cut out is supplied without the 100mm chimney connection.* Plain plate, requires cutting. Maximum cut-out 500 x 700.** Dimension representing the end of the 100mm long chimney connection.%u2020 In order to facilitate subsequent work on the boiler (replacing the water distributing tube etc.) use a flanged connection from the boiler to the system, making sure you comply with minimum clearance dimension D. If A = 1.2m (door opening side), A%u2019 = 0.5m. If A = 0.5m, A%u2019 = 1.2m (door opening side): adapt the dimensions on the basis of the dimensions of the burner when the door is open. B = 1.5m: adapt the dimensions on the basis of the dimensions of the burner.D minAngled connection (not supplied)Straight connection (not supplied)%u2020Boiler body%u2020Air outletAir inlet104 Gas Boilers
