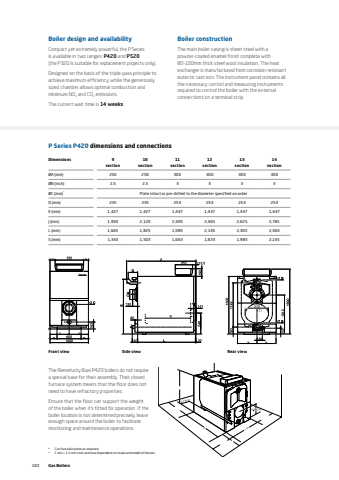

Boiler design and availabilityCompact yet extremely powerful, the P Series is available in two ranges: P420 and P520(the P320 is suitable for replacement projects only).Designed on the basis of the triple-pass principle to achieve maximum efficiency, while the generously sized chamber allows optimal combustion and minimum NOx and CO2 emissions.The current wait time is 14 weeks.Boiler constructionThe main boiler casing is sheet steel with a powder-coated enamel finish complete with 80-100mm thick steel wool insulation. The heat exchanger is manufactured from corrosion-resistant eutectic cast iron. The instrument panel contains all the necessary control and measuring instruments required to control the boiler with the external connections on a terminal strip.Dimensions 9section10section11section12section13section14section%u00d8A (mm) 250 250 300 300 300 300%u00d8B (inch) 2.5 2.5 3 3 3 3%u00d8C (mm)* Plate intact or pre-drilled to the diameter specified on orderD (mm) 235 235 254 254 254 254E (mm) 1,427 1,427 1,447 1,447 1,447 1,447J (mm) 1,950 2,120 2,305 2,465 2,625 2,785L (mm) 1,665 1,825 1,985 2,145 2,305 2,465S (mm) 1,343 1,503 1,663 1,823 1,983 2,143P Series P420 dimensions and connectionsThe Remeha by Baxi P420 boilers do not require a special base for their assembly. Their closed furnace system means that the floor does not need to have refractory properties.Ensure that the floor can support the weight of the boiler when it%u2019s fitted for operation. If the boiler location is not determined precisely, leave enough space around the boiler to facilitate monitoring and maintenance operations.Front view Side view Rear view# Cut flue plain plate as required.* C min = 1.5 mtrs min and max dependent on make and model of burner.102 Gas Boilers
