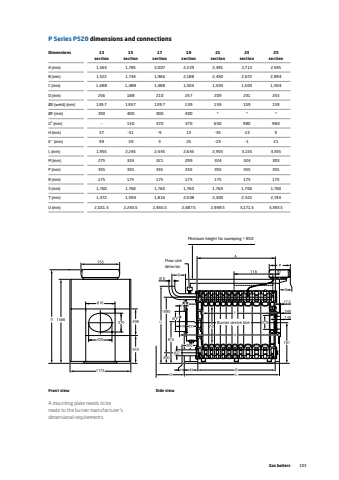

P Series P520 dimensions and connectionsMinimum height for sweeping = 850Burner centre lineFlow rate detectorDimensions 13section15section17section19section21section23section25sectionA (mm) 1,563 1,785 2,007 2,229 2,491 2,713 2,935B (mm) 1,522 1,744 1,966 2,188 2,450 2,672 2,894C (mm) 1,488 1,488 1,488 1,504 1,504 1,504 1,504D (mm) 256 188 210 257 209 231 253%u00d8E (weld) (mm) 139.7 139.7 139.7 159 159 159 159%u00d8F (mm) 350 400 400 400 * * *G# (mm) %u2013 150 370 370 650 980 980H (mm) 37 -31 -9 13 -35 -13 9K** (mm) 49 -19 3 25 -23 -1 21L (mm) 1,955 2,245 2,445 2,645 2,955 3,155 3,355M (mm) 275 324 321 299 324 324 303P (mm) 355 355 355 355 355 355 355R (mm) 175 175 175 175 175 175 175S (mm) 1,760 1,760 1,760 1,760 1,760 1,760 1,760T (mm) 1,372 1,594 1,816 2,038 2,300 2,522 2,744U (mm) 2,021.5 2,243.5 2,465.5 2,687.5 2,949.5 3,171.5 3,393.5Front viewA mounting plate needs to be made to the burner manufacturer%u2019s dimensional requirements.Side viewGas boilers 103
