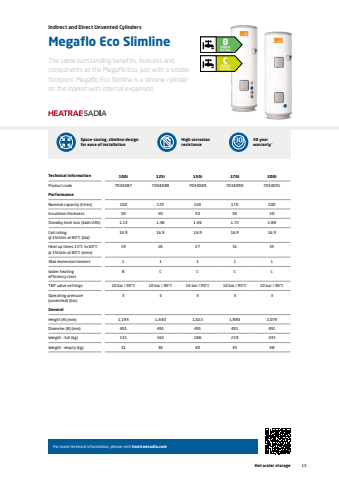

For more technical information, please visit heatraesadia.comTechnical information 100i 125i 150i 170i 200iProduct code 7034087 7034088 7034089 7034090 7034091PerformanceNominal capacity (litres) 100 125 150 170 200Insulation thickness 50 50 50 50 50Standby heat loss (kWh/24h) 1.13 1.38 1.46 1.72 1.88Coil rating @ 15l/min at 80%u00b0C (kW)16.9 16.9 16.9 16.9 16.9Heat up times 15%u00b0C to 60%u00b0C @ 15l/min at 80%u00b0C (mins)19 26 27 31 353kW immersion heaters 1 1 1 1 1Water heating efficiency classB C C C CT&P valve settings 10 bar / 90%u00b0C 10 bar / 90%u00b0C 10 bar / 90%u00b0C 10 bar / 90%u00b0C 10 bar / 90%u00b0COperating pressure (unvented) (bar)3 3 3 3 3GeneralHeight (A) (mm) 1,194 1,440 1,622 1,883 2,079Diameter (B) (mm) 491 491 491 491 491Weight %u2013 full (kg) 131 162 186 219 243Weight %u2013 empty (kg) 31 36 40 45 48Megaflo Eco SlimlineThe same outstanding benefits, features and components as the Megaflo Eco, just with a smaller footprint. Megaflo Eco Slimline is a slimline cylinder on the market with internal expansion.Indirect and Direct Unvented CylindersHigh corrosion resistanceSpace-saving, slimline design for ease of installation30 yearwarranty*Hot water storage 13
