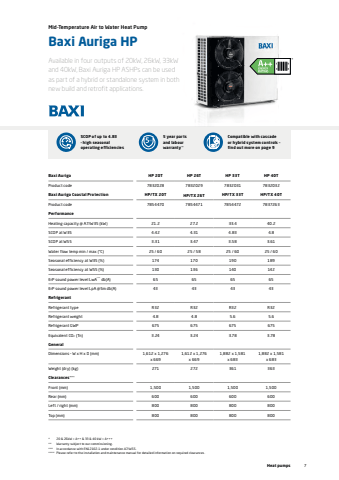

Available in four outputs of 20kW, 26kW, 33kW and 40kW, Baxi Auriga HP ASHPs can be used as part of a hybrid or standalone system in both new build and retrofit applications. Baxi Auriga HPMid-Temperature Air to Water Heat PumpBaxi Auriga HP 20T HP 26T HP 33T HP 40TProduct code 7832028 7832029 7832031 7832032Baxi Auriga Coastal Protection HP/TX 20T HP/TX 26T HP/TX 33T HP/TX 40TProduct code 7854470 7854471 7854472 7837263PerformanceHeating capacity @ A7/W35 (kW) 21.2 27.2 33.4 40.2SCOP at W35 4.42 4.31 4.83 4.8SCOP at W55 3.31 3.47 3.58 3.61Water flow temp min / max (%u00b0C) 25 / 60 25 / 58 25 / 60 25 / 60Seasonal efficiency at W35 (%) 174 170 190 189Seasonal efficiency at W55 (%) 130 136 140 142ErP sound power level LwA*** db(A) 65 65 65 65ErP sound power level LpA @5m db(A) 43 43 43 43RefrigerantRefrigerant type R32 R32 R32 R32Refrigerant weight 4.8 4.8 5.6 5.6Refrigerant GWP 675 675 675 675Equivalent CO2 (Tn) 3.24 3.24 3.78 3.78GeneralDimensions %u2013 W x H x D (mm) 1,612 x 1,276 x 6691,612 x 1,276 x 6691,882 x 1,581 x 6831,882 x 1,581 x 683Weight (dry) (kg) 271 272 361 363Clearances****Front (mm) 1,500 1,500 1,500 1,500Rear (mm) 600 600 600 600Left / right (mm) 800 800 800 800Top (mm) 800 800 800 800* 20 & 26kW = A++ & 33 & 40 kW = A+++** Warranty subject to our commissioning.*** In accordance with EN12102-1 under condition A7/W55. **** Please refer to the installation and maintenance manual for detailed information on required clearances.5 year parts and labour warranty**SCOP of up to 4.83 %u2013 high seasonal operating efficienciesCompatible with cascade or hybrid system controls %u2013 find out more on page 9*Heat pumps 7
