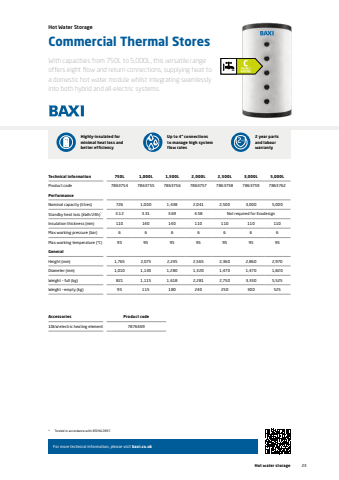

Page 23 - Demo

For more technical information, please visit baxi.co.ukWith capacities from 750L to 5,000L, this versatile range offers eight flow and return connections, supplying heat to a domestic hot water module whilst integrating seamlessly into both hybrid and all-electric systems.Commercial Thermal StoresHot Water StorageTechnical information 750L 1,000L 1,500L 2,000L 2,500L 3,000L 5,000LProduct code 7863754 7863755 7863756 7863757 7863758 7863759 7863762PerformanceNominal capacity (litres) 726 1,000 1,438 2,041 2,500 3,000 5,000Standby heat loss (kWh/24h)* 3.12 3.31 3.69 4.58 Not required for EcodesignInsulation thickness (mm) 110 140 140 110 110 110 110Max working pressure (bar) 6 6 6 6 6 6 6Max working temperature (%u00b0C) 95 95 95 95 95 95 95GeneralHeight (mm) 1,765 2,075 2,245 2,565 2,360 2,860 2,970Diameter (mm) 1,010 1,130 1,280 1,320 1,470 1,470 1,820Weight %u2013 full (kg) 821 1,115 1,618 2,281 2,750 3,330 5,525Weight %u2013 empty (kg) 95 115 180 240 250 300 525* Tested in accordance with BSEN12897.Accessories Product code10kW electric heating element 78764692 year parts and labour warrantyUp to 4%u201d connections to manage high system flow ratesHighly-insulated for minimal heat loss and better efficiencyHot water storage 23
